1. WM-5000S reader
2. USB cable
3. RFID tags
4. Guard ID card
5. Event wallet (optional)
6. Software
WM-5000S guard tour system is our newest RFID guard tour system. It inherits all advantages of WM-5000V+. With special waterproof pad and adhesive, the guard tour reader is so waterproof that it even can work under water. Furthermore, over 60000 reads are able to be stored before the next download of data.
WM-5000S guard tour reader has its own features, light and smaller size, bright color design, rechargeable batter etc, which make it fit for not only security guard tour monitoring, but also in areas of hotel, hospital checking etc..

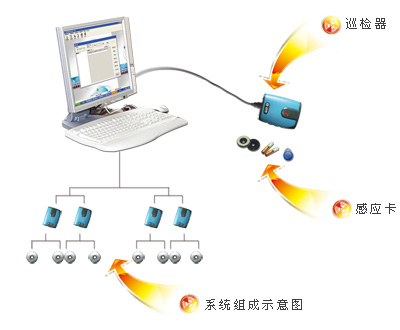

The WM-5000S guard tour reader works with the popular RFID tag. With a simple non-contact swipe, you can access information from tag, and then download patrol data to our intellectualized management software with a USB port cable. The information reports can demonstrate the guards patrolling activities.
Features
ABS plastic case, light weight and smaller size
Non-contacting reading
Completely water proof
USB cable communications, high download speed
Super storage capacity 4Mb Flash, 60000 records
Read RFID tag
Easy maintenance
Reading distance 5 cm
Brilliant exterior design, easy operation
Real time internal clock
Rechargeable battery
Low power consumption and long battery life, 270 000 continuous reads
Technical Information
WM-5000S
Physical
ABS plastic case
Dimensions
65mmx50mmx15mm
Working Frequency
125KHz
Operating Temperature
-50 to 186 F (-45 to +85 C)
Humidity
10% to 98% non-condensing
Memory
4Mb Flash ROM
Storage Capacity
60000 pieces records
Battery
3.6V
rechargeable battery
Signal Card Detection
Auto induction card-reading
Card Reading Distance
3cm-5cm
Communication
USB port, no need downloader station
Weight
56g
Features
EMID signal cards are constructed to withstand intentional sabotages, which can be read from long distances(0-12cm) and operated in wide temperature ranges. They are also completely waterproof, and can be sealed inside non-metalic material walls; Button, circle, keyring, nail and cylinder-shaped cards used as guard tour checkpoints. These can be installed either on or beneath wall surfaces; Key chain-attachable type personnel / incident card used to identify patrol personnel or events and incidents. Its working frequency is 125KHz.
Technical Information
EM signal card
Physical
Water-resistant ant, ASB plastic case
Shape
Nail, button, circle, keyring and cylinder shape, etc.
Weight
About 2 g
Operating Temperature
-20 C to +50 C
Working Frequency
125KHz
Battery
None
Data Storage
Unique 64-bit serial number (read-only)
USB communication cable
This cable can be used to connect between the reader and PC, which is according with DY/T1019, IEC61156, ANSI/EIA/TIA-568 standard.
Hareware quick start guide
1. The patrolling guard takes the reader and read his own Guard ID to identify himself with the system
2. Then the guards go to the checkpoints, the Reader will automatically read each EM signal card and no need touch it. When reading successfully, a flash of the red indicator light accompanied by a "beep" means that a reading has been made. The WM-5000S will store the signal card's ID number and time for every station reading.
3. After patrolling are done, use the USB port cable to connect the computer and the Reader directly and have a data analysis and management..
